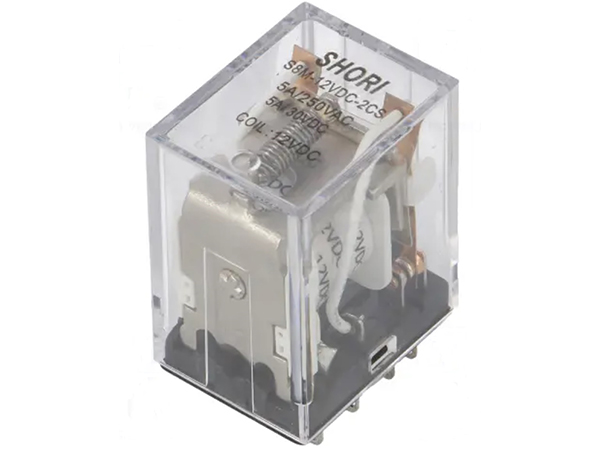

S8M(2P)
Features
| Outline(L x W x H)mm: 27.2 x 21.5 x 35.2 |
| ● 5A general purpose power relay. |
| ● DPDT , 3PDT& 4PDT contact configurations. |
| ● AC & DC coil. |
| ● Optional to be equipped with lamp, stud, diode, Lashed contact ,and flanged cover. |
Ordering information
| S8M | - | 12VDC | 2C | - | S |
| 1 | 2 | 3 | 4 |
| 1. | S8M | -- | Basic series designation |
| 2. | 12 | -- | Coil Voltage (DC6V~120V) |
| Coil Voltage (AC12V~240V) | |||
| 3. | 2C | -- | Double pole double throw (DPDT) |
| 2A | -- | Double pole normally open(DPNO) | |
| 4. | S | -- | Quick connect terminal |
| P | -- | PCB terminal | |
| Standard Type (0.9W) |

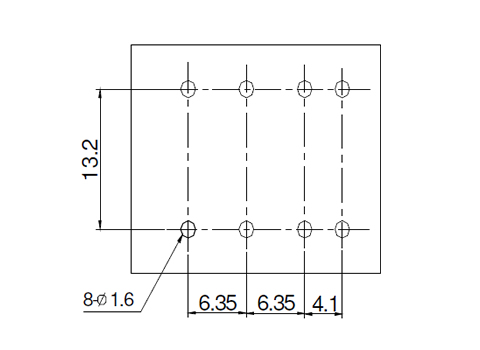

PC Board Layout
