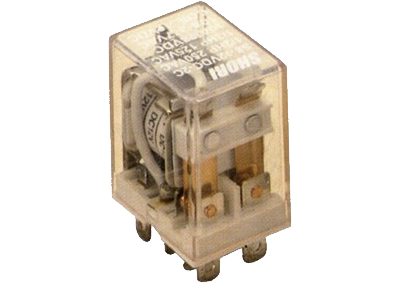

S8L(2P)
Features
| Outline(L x W x H)mm: 27.2 x 21.5 x 35.2 |
| ● Low coil power consumption with high response time. |
| ● High reliability and long life with better vibration and shock resistance. |
| ● Socket and PCB terminal available. |
| ● Optional to be equipped with lamp, stud, diode, lashed contact ,and flanged cover. |
Ordering information
| S8L | - | 12VDC | 1A | - | S |
| 1 | 2 | 3 | 4 |
| 1. | S8L | -- | Basic series designation |
| 2. | 12 | -- | Coil Voltage (DC6V~120V) |
| Coil Voltage (AC12V~240V) | |||
| 3. | 2A | -- | Double pole normally open |
| 2C | -- | Double pole double throw | |
| 4. | S | -- | Quick connect terminal |
| P | -- | PCB terminal | |
| Standard Type (0.9W) |
PC Board Layout
