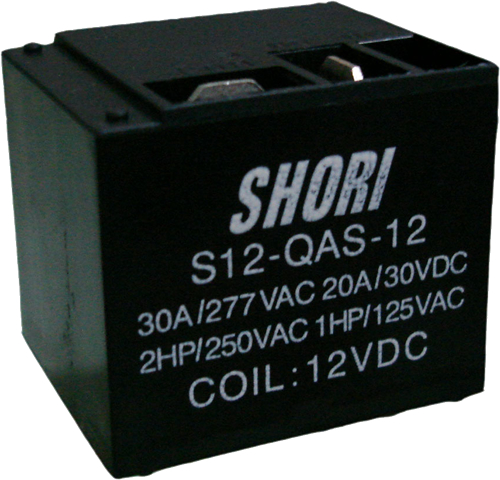

S12(Q)
Features
| Outline(L x W x H)mm: 32 x 27.1 x 20.6 |
| ● Heavy duty 30A general purpose power relays. |
| ● Optional for open frame, dust cover, sealed type and with and without quick terminal on top ,etc. |
| ● High insulation type Dielectric strength type available. |
| ● Ideal for HVAC, UPS & power supply, home appliances. |
Ordering information
| S12 | - | P | C | S | - | 12 |
| 1 | 2 | 3 | 4 | 5 |
| 1. | S12 | -- | Basic series designation |
| 2. | P | -- | PCB terminal |
| F | -- | Quick connect terminal | |
| Q | -- | PCB terminal & quick connect Terminal | |
| 3. | A | -- | Single pole normally open |
| B | -- | Single pole normally closed | |
| C | -- | Single pole double throw | |
| 4. | S | -- | Sealed type washable |
| Blank | -- | Open type | |
| Standard Type (0.93W) | |||
| 5. | 12 | -- | Coil Voltage (5V~110V) |
PC Board Layout
