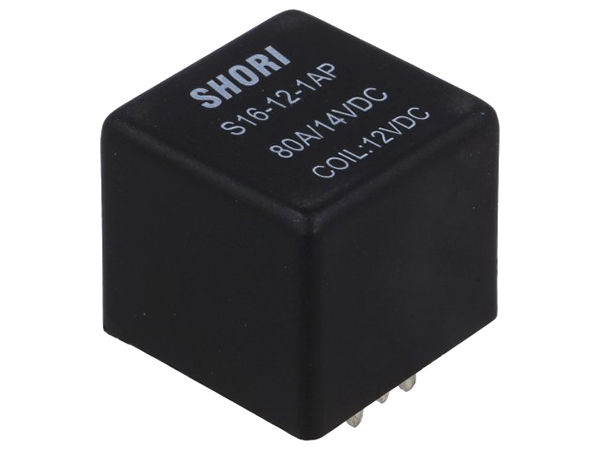

S16
Features
| Outline(L x W x H)mm: 28.6 x 28.6 x 25.3 |
| ● Contact rating 80A,150A. |
| ● High temperature version. |
| ● Compatible fasten terminal arrangement with this kind of power relay. |
| ● Standardized design for plug-in quick connect terminals. |
Ordering information
| S16 | H | - | 12V | - | 1A | - | C |
| 1 | 2 | 3 | 4 | 5 |
| 1. | S16 | -- | Basic series designation |
| 2. | Blank | -- | Standard type (1.9W) |
| H | -- | Resistive load for 150A/14VDC | |
| 3. | 12V | -- | Coil Voltage (6V~48V) |
| 4. | 1A | -- | Single pole normally open |
| 1B | -- | Single pole normally close | |
| 1C | -- | Single pole double throw | |
| 5. | C | -- | Plastic dust cover |
| C1 | -- | Mounting ear on cover (plastic) | |
| C1S | -- | C1 cover for steel bracket |
PC Board Layout
