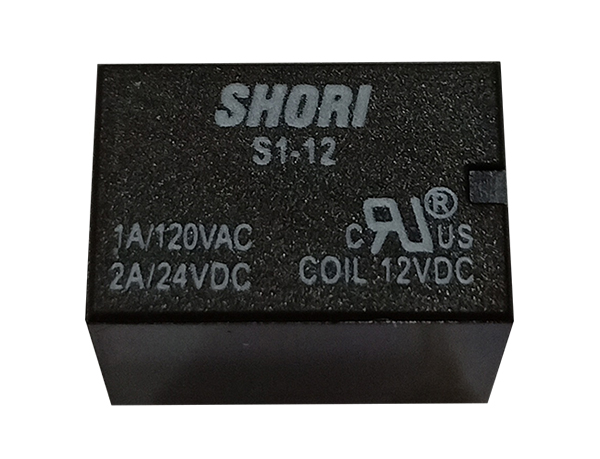

S1
Features
| Outline(L x W x H)mm: 15.7 x 10.7 x 11.3 |
| ● S1 Relay Performs high reliability in dry circuit. |
| ● Low current and low profile miniature PCB relay. |
| ● Fine Ag contacts with rating 1A and 3A. |
| ● Plastic sealed and flow solder types are available. |
| ● UL/CUL approval. |
Ordering information
| S1 | - | 12 | B | - | S |
| 1 | 2 | 3 | 4 |
| 1. | S1 | -- | Basic series designation |
| 2. | 12 | -- | Coil Voltage (3V~24V) |
| 3. | B | -- | High sensitivity Type (0.2W) |
| Blank: Standard Type (0.45W) | |||
| 4. | S | -- | Sealed type washable |
| Blank: Sealed type |

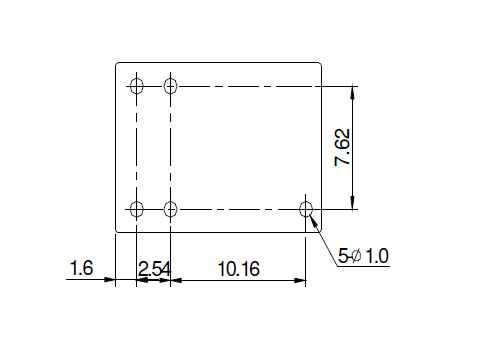

PC Board Layout
