S7

Features

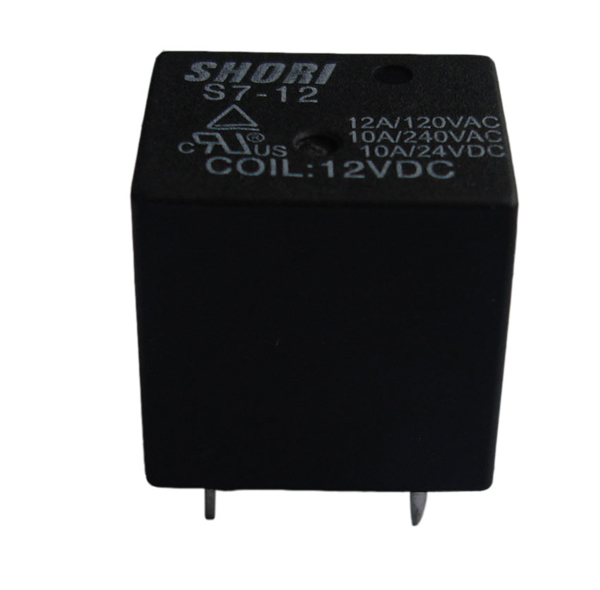

Outline(L x W x H)mm: 20.2 x 16.5 x 20.0
● Small footprint.
● Miniature PCB surge cube relay.
● Reverse contact terminal position version is available.
● SPNO, SPNC, SPDT and Sealed flux free & sealed Washable type are available.
Ordering information
S7 - 12 A - S
1   2 3   4
1. S7 -- Basic series designation
2. 12 -- Coil Voltage (3V~48V)
3. A -- Form A, normally open (SPNO)
  B -- Form B, normally closed (SPNC)
  Blank -- Form C, double-throw (SPDT)
4. S -- Sealed type washable
  Blank -- Sealed type
      Standard Type (0.36W)
PC Board Layout
