S3M
Features

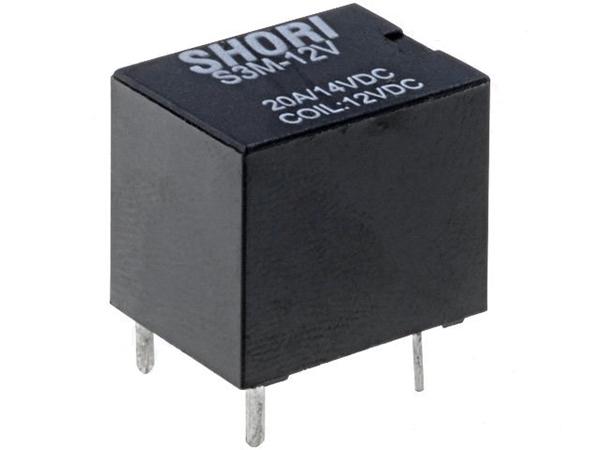

| Outline(L x W x H)mm: 15.6 x 12.0 x 13.5 |
| ● High sensitivity in small package. |
| ● Nominal power 0.6w and 0.8w. |
| ● 20A/14VDC switching capacity. |
| ● SPNO, SPDT and Plastic sealed & Flow solder type are available. |
Ordering information
| S3M | - | 12 | 1A | - | S |
| 1 | 2 | 3 | 4 |
| 1. | S3M | -- | Basic series designation |
| 2. | 12 | -- | Coil Voltage (3V~24V) |
| High sensitivity Type (0.6W) | |||
| Blank: Standard Type (0.8W) | |||
| 3. | 1A | -- | Form A, normally open (SPNO) |
| 1C | -- | Form C, double-throw (SPDT) | |
| 4. | S | -- | Sealed type washable |
| Blank: Sealed type |

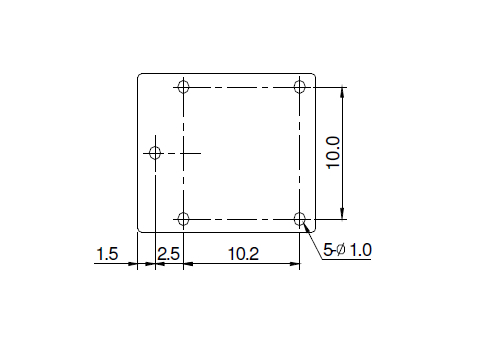

PC Board Layout
