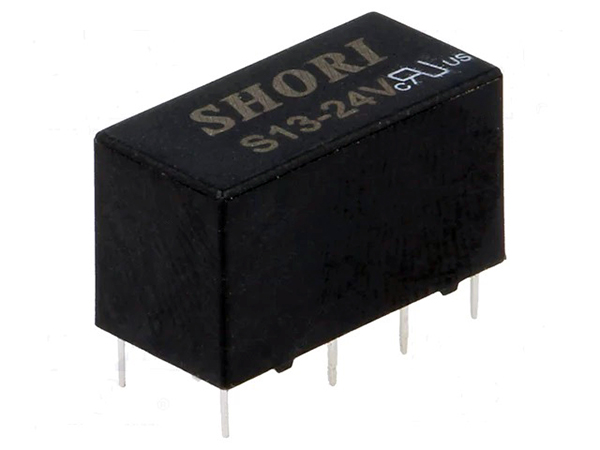

S13
Features
| Outline(L x W x H)mm: 20.2 x 9.8 x 12 |
| ● Wide switching capacity of 10 μA to 2A. |
| ● Sensitivity coil:0.22W. |
| ● High dielectric strength coil-contacts: 1000VAC, open contacts:750VAC. |
| ● Conforms to FCC part 68 requirements. |
| ● DPDT configuration. |
| ● High reliability bifurcated Contact. |
Ordering information
| S13 | - | 12 | B |
| 1 | 2 | 3 |
| 1. | S13 | -- | Basic series designation |
| 2. | 12 | -- | Coil Voltage (3V~48V) |
| 3. | Blank | -- | Standard Type (0.2W) |
| B | -- | High sensitivity Type (0.15W) |

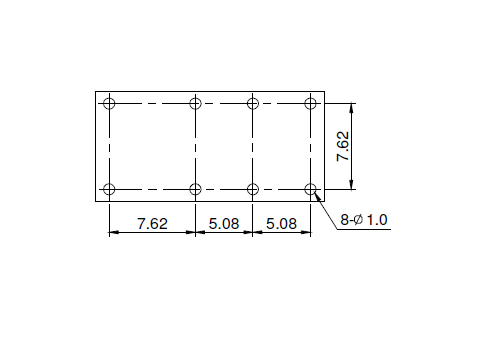

PC Board Layout
