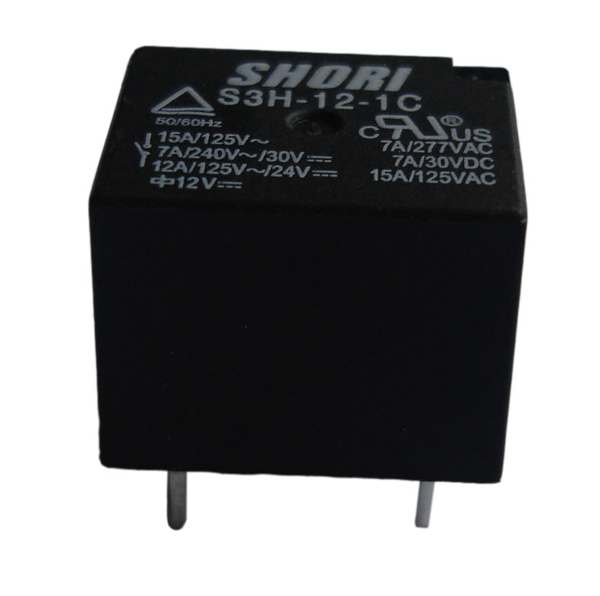

S3H
Features
| Outline(L x W x H)mm: 19.6 x 15.6 x 15.0 |
| ● S3H Series Relay covers switching capacity by 10A is spite of miniature spite to comply with user’s wide selection. |
| ● The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions. |
| ● SPNO, SPNC, SPDT and sealed flux free & sealed Washable type are available. |
Ordering information
| S3H | - | 12B | 1A | - | S |
| 1 | 2 | 3 | 4 |
| 1. | S3H | -- | Basic series designation |
| 2. | 12 | -- | Coil Voltage (3V~48V) |
| B | -- | High sensitivity Type (0.24W) | |
| Blank: Standard Type (0.36W) | |||
| 3. | 1A | -- | Form A, normally open (SPNO) |
| 1B | -- | Form B, normally closed (SPNC) | |
| 1C | -- | Form C, double-throw (SPDT) | |
| 4. | S | -- | Sealed type washable |
| Blank; Sealed type |
PC Board Layout
