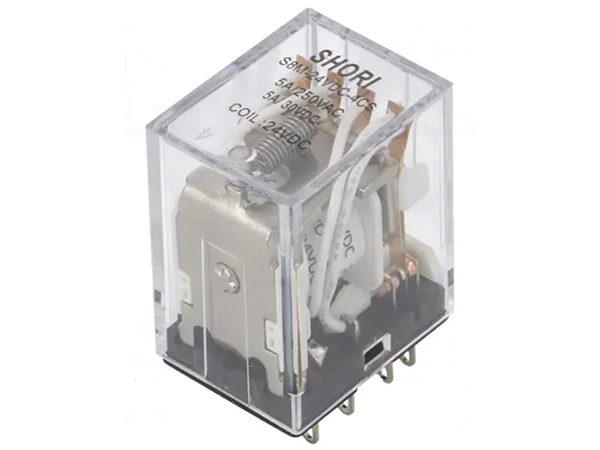

S8M(4P)

Features
Outline(L x W x H)mm: 27.2 x 21.5 x 35.2
● 5A general purpose power relay.
● DPDT , 3PDT& 4PDT contact configurations.
● AC & DC coil.
● Optional to be equipped with lamp, stud, diode, Lashed contact ,and flanged cover.
Ordering information
S8M - 12VDC 2C - S
1   2 3   4
1. S8M -- Basic series designation
2. 12 -- Coil Voltage (DC6V~120V)
      Coil Voltage (AC12V~240V)
3. 4C -- Four pole double throw (4PDT)
  4A -- Four pole normally open(4PNO)
4. S -- Quick connect terminal
  P -- PCB terminal
      Standard Type (0.9W)

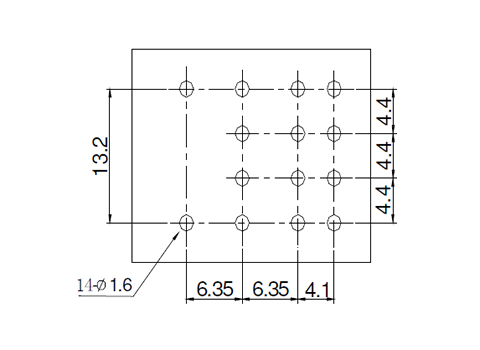

PC Board Layout
