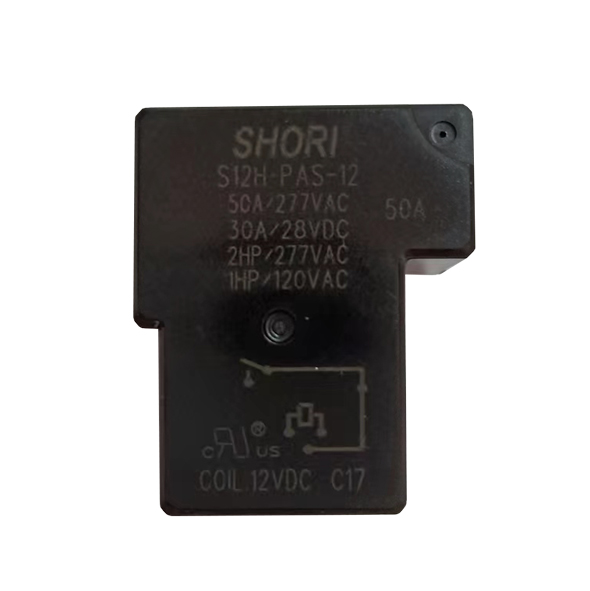

S12H-50A
Features
Application :
Outline(L x W x H)mm: 26.8 x 31.9 x 19.5 |
● Heavy duty 50A general purpose power relays |
● High insulation type Dielectric strength type available |
● Application:UPS、Solar Inverter、EV charger |
Ordering information
S12H | - | PAS | - | 12 | 50A |
1 | 2 | 3 |
1. | -- | Relay Model |
2. | -- | Contact arrangement(1A: SPNO) |
3. | -- | Coil Voltage |

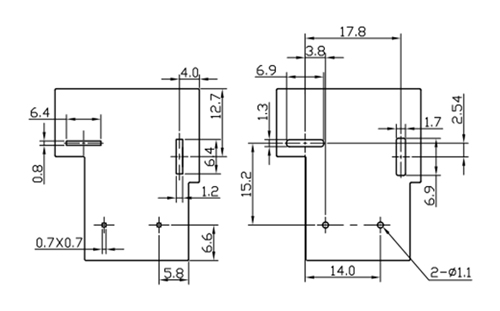

PC Board Layout
![](/upload/S12H50A_layout.jpg)
